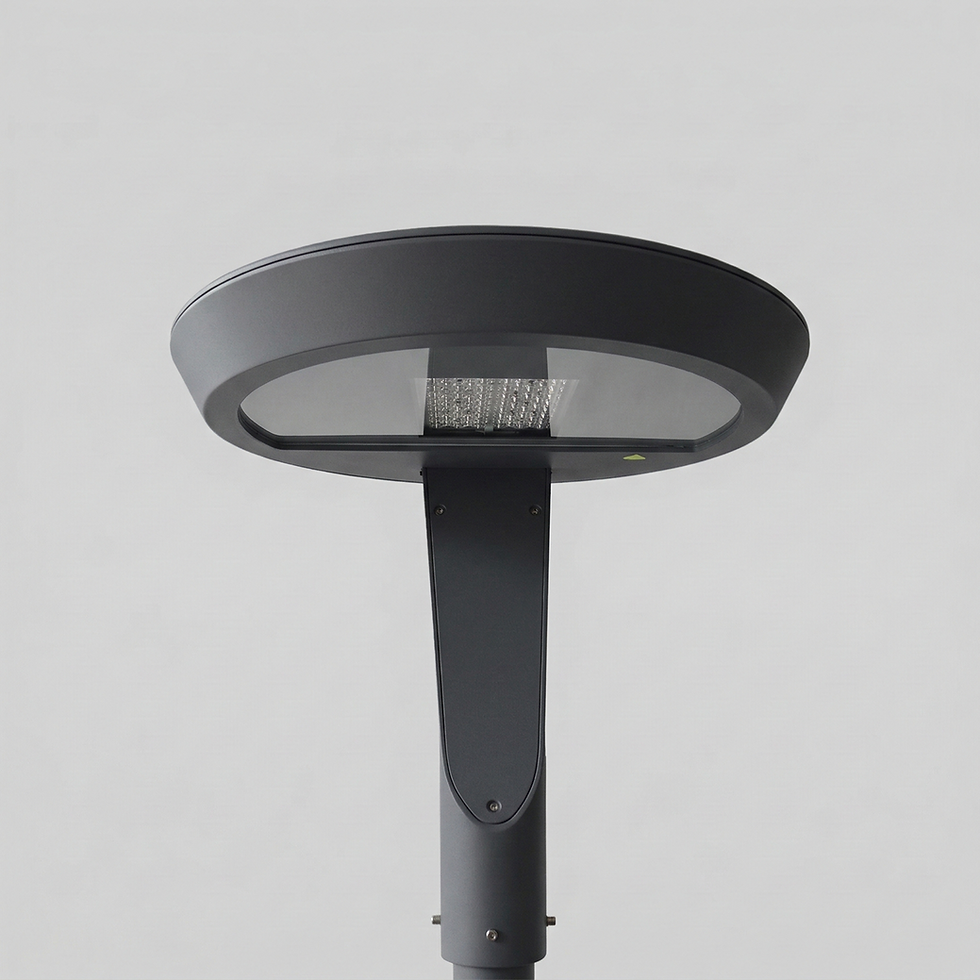

NPT1 SERIES
LANDSCAPE LIGHTING
NPT1 SERIES 30W / 50W / 60W
ป้องกันไฟกระชาก 10KV
ระดับการป้องกันฝุ่นละออง IP 66
ทนต่อแรงกระแทก IK09
ค่าความถูกต้องของสี (Ra) ≥ 80
Housing: Die-cast aluminum housing
Column: Extruded aluminium pipe
Coating: Pre-treated powder coating for corrosion resistance Ultraviolet stabilized polyester powder coat.
Through wiring: Single cable entry.
Diffuser: Tempered safety glass
Light source: LED
Driver Option: Philips Xi-EP series (Mean well / Inventronic/ Osram)
Driver: Integral control gear unit
Gasket: Weatherproof and durable silicone rubber gasket
Fasteners: Stainless steel screws ingrade 304
Life span: 50,000 hrs @ Ta = 25°C (L70/B10)
Warranty: 3 years
Nominal Wattage: Power: 30W / 50W / 60W
Lumen: ≥4200 lm / ≥7000 lm / ≥8400
Luminous Efficacy: >140 lm/W
Input Voltage: 100–305 VAC
Frequency: 47–63 Hz
Color Rendering Index (CRI): ≥ 80
Ingress protection: IP66
Impact resistance: IK09
THD: <10%
Surge protection: 10KV
Dimming type: On/Off, 1-10V, DALI
Operating Temp: -30°C ~ +65°C
Cable: Pre-wired with 1.5 m. of 3×1.0 sq. mm.
