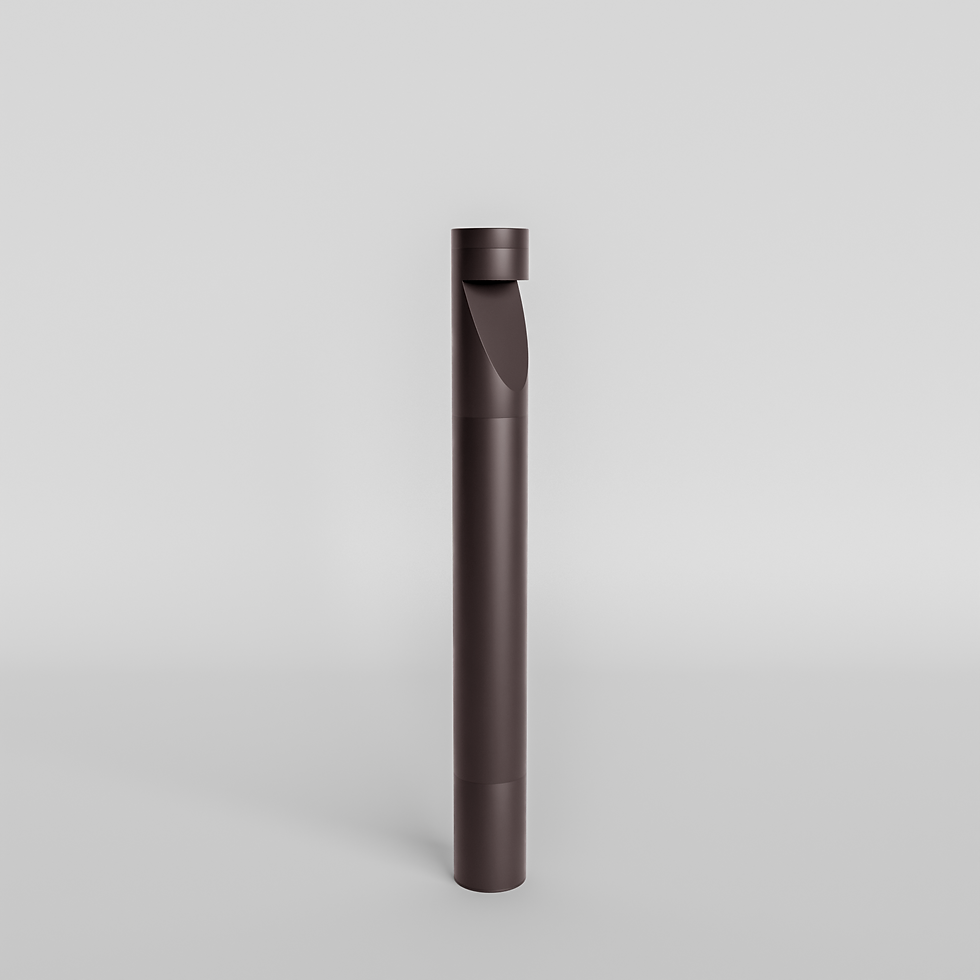

NBL4 SERIES
LANDSCAPE LIGHTING
BOLLARD 10W
ป้องกันไฟกระชาก 6-10KV
ระดับการป้องกันฝุ่นละออง IP 54
ทนต่อแรงกระแทก IK08
ค่าความถูกต้องของสี (Ra) ≥ 80
Housing: Die-cast aluminum housing
Column: Extruded aluminium pipe
Coating: Pre-treated powder coating for corrosion resistance Ultraviolet stabilized polyester powder coat.
Through wiring: Single cable entry.
Diffuser: Clear UV-stabilised PMMA diffuser.
Light source: LED
Reflector: Anodised high-purity aluminium reflector
Driver Option: Integral control gear unit
Driver: Constant Current
Gasket: Weatherproof and durable silicone rubber gasket
Fasteners: Stainless steel screws ingrade 304
Life span: >120,000 hrs
Warranty: 3 years
Nominal Wattage: 10W
Lumen: 202 lm
Luminous Efficacy: 20 lm/W
Input Voltage: 220-240V
Frequency: 50/60Hz
Color Rendering Index (CRI): ≥ 80
Ingress protection: IP54
Impact resistance: IK08
THD: <10%
Surge protection: 6-10KV
Dimming type: On/Off, 1-10V, DALI
Operating Temp: - 20 ̊C to +40 ̊C
Cable: Pre-wired with 1.5 m. of 3×1.0 sq. mm.
