NESCO POLE
High-mast pole
The Nesco high-mast pole is a multi-purpose pole customized for a specific need, area, and angle. The design can be customized to host from 4 to 20 lamps and with a height from 15 to 30 meters. The specially-designed top, fabricated from high-quality aluminum, is equipped with three pulleys and slings to stabilize a light circlet. This system allows lamps to be changed when needed. The gear set comprises of a double drum winch engineered for maximum efficiency. The Nesco high-mast pole is exceptional in both utilization and design.


H | POLE (D1) | POLE (D2) | THICKNESS | BASE PLATE (X) | BASE PLATE (Y) |
---|---|---|---|---|---|
15 | 186 | 410 | 4.5 | 650 | 530 |
20 | 186 | 500 | 4.5 | 750 | 619 |
25 | 186 | 550 | 6 | 770 | 670 |
30 | 186 | 600 | 6 | 850 | 600 |
IMAGE GALLERY



1/1

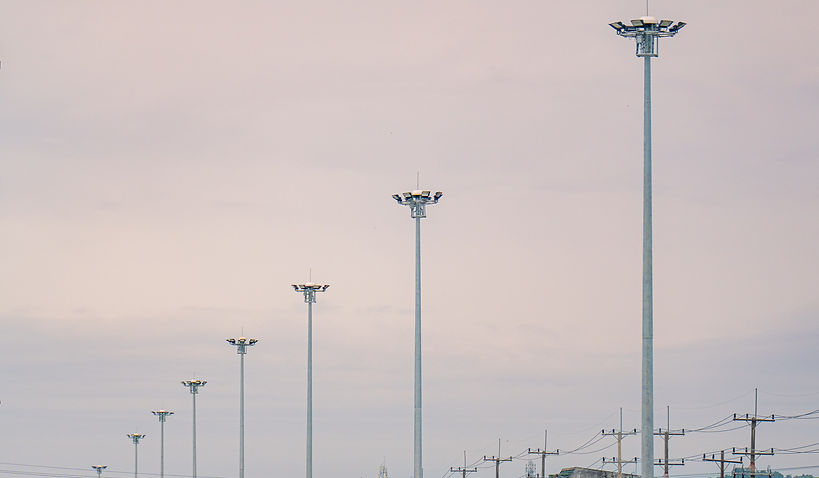

Our installed High-Mast Pole
